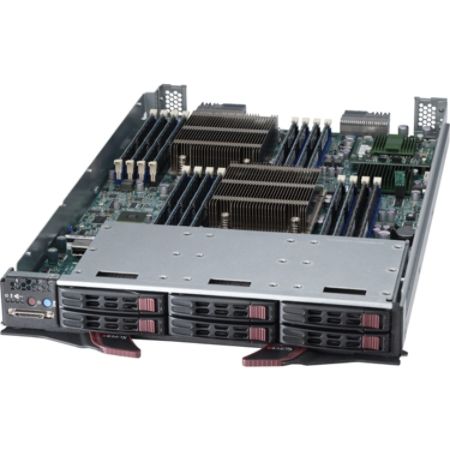

Supermicro SuperBlade SBI-7127R-S6 Barebone System Blade - Intel C602 Chipset - Socket R LGA-2011 - 2 x Processor Support - Black Item # 935659
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
935659
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The SuperBlade offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, SuperBlade delivers true server functionality.
Product Details
| Item # | 935659 |
| Manufacturer # | 11307064 |
| Ethernet Technology | Gigabit Ethernet |
| RAID Levels | 0, 1, 1+0, 5, 5+0, 6 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 1.62 kW |
| height | 1.7 in |
| Certifications & Standards | ACPI up to 3.0; Electromagnetic Compatibility (EMC): -- United States / Canada: FCC- Emissions (US) Verification; -- Europe: EN55022 - Emissions; EN55024 - Immunity; EN61000-3-2 - Harmonics; EN61000-3-3 - Voltage Flicker; CE - EMC Directive 89/336/EEC; Safety Compliance: -- United States / Canada: UL60950-1 - CSA/CUL 60950-1; -- Europe: EN60950-1, CE - Low Voltage Directive 73/23/EEE; -- Germany: TUV |
| Graphics Controller Manufacturer | Matrox |
| width | 11.3 in |
| Product Line | SuperBlade |
| package contents | Processor Blade SBI-7127R-S6 (Black); 1 x Blade with Hardware RAID (2208); 1 x 10-Black Blade with six 2.5" HDD; 6 x Black 2.5" Hard Drive Tray; 1 x Power & KVM buttons, LED, KVM Connector; 2 x Heatsink for Intel CPU; 1 x Dual Port 10G Ethernet AOC for Blade; 1 x InfiniBand Dual-Port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip); 1 x InfiniBand Dual-Port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX-2 chip) |
| depth | 18.9 in |
| Product Name | Processor Blade SBI-7127R-S6 (Black) |
| QuickPath Interconnect Supported | Yes |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| weight | 8.60 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 512 GB |
| Number of Total Memory Slots | 16 |
| controller type | 6Gb/s SAS |
| Network (RJ-45) | Yes |
| Storage Controller Name | LSISAS2208 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Internal 2.5" Bays | 6 |
| Number of Power Supplies Installed | 4 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C602 |
| Number of Total Expansion Bays | 6 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200 |
| form factor | Blade |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | 512 GB - registered ¦ 128 GB - unbuffered |
| color | black |
| warranty length | 3-year limited |
| model name | SBI-7127R-S6 |
| QuickPath Interconnect | 8 GT/s |
| Show More ▾ |
